Transmission Code: NV4500
Alternative Names: MT8, NV4500/MW3, NV4500HD

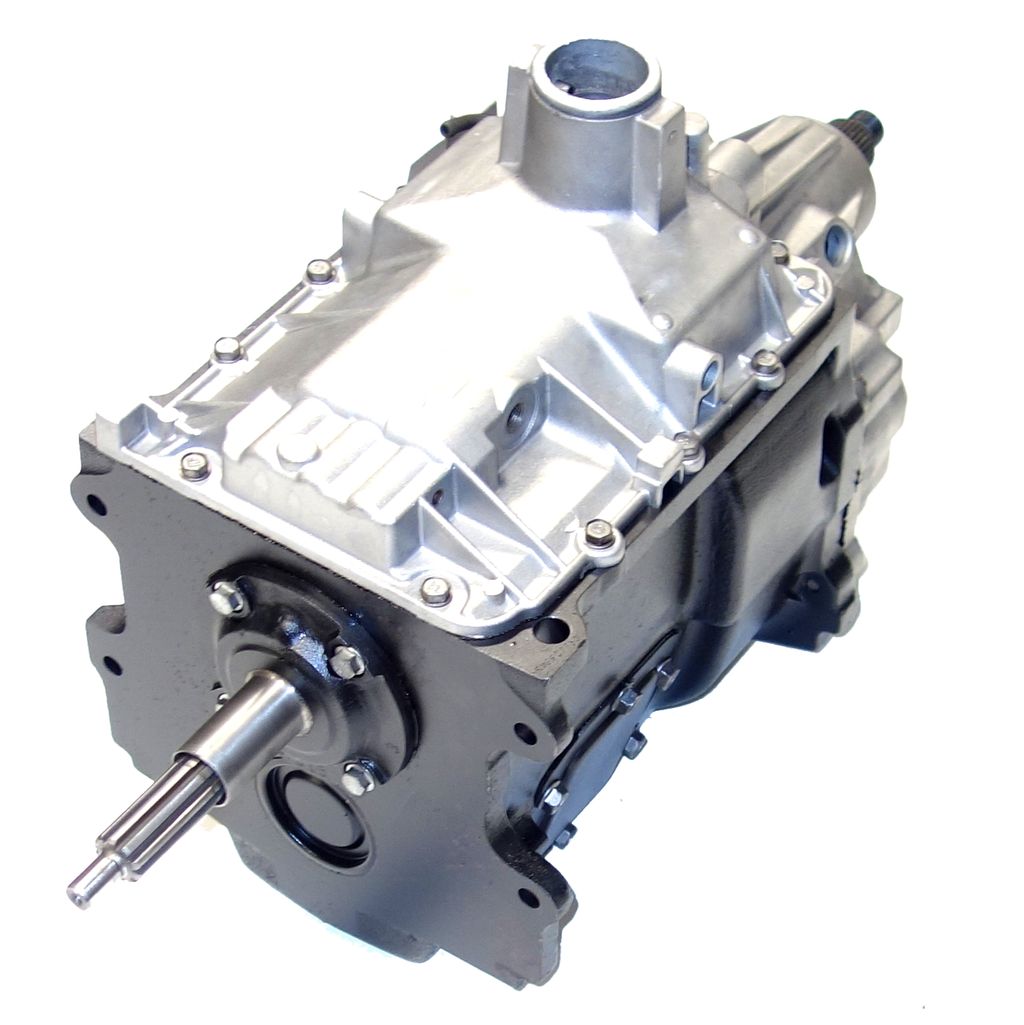

RemanufacturedNV4500 Transmission
$2,352.00
- Part Number:
- 40012
- Vehicle:
- Chevrolet K1500 (1992)
- Chevrolet K3500 (1992)
- Note:
- NV4500; Cast Iron Case, Detachable Bell Housing, External Slave Cylinder, Round Push And Twist Style Shift Lever Retainer, Main Case Cast 16812, Top Cover Cast 17321, Or 25138, Tail Housing Cast 18306, Hollander Numbers: 400-02624, 400-03919
- Transmission Speed:
- 5

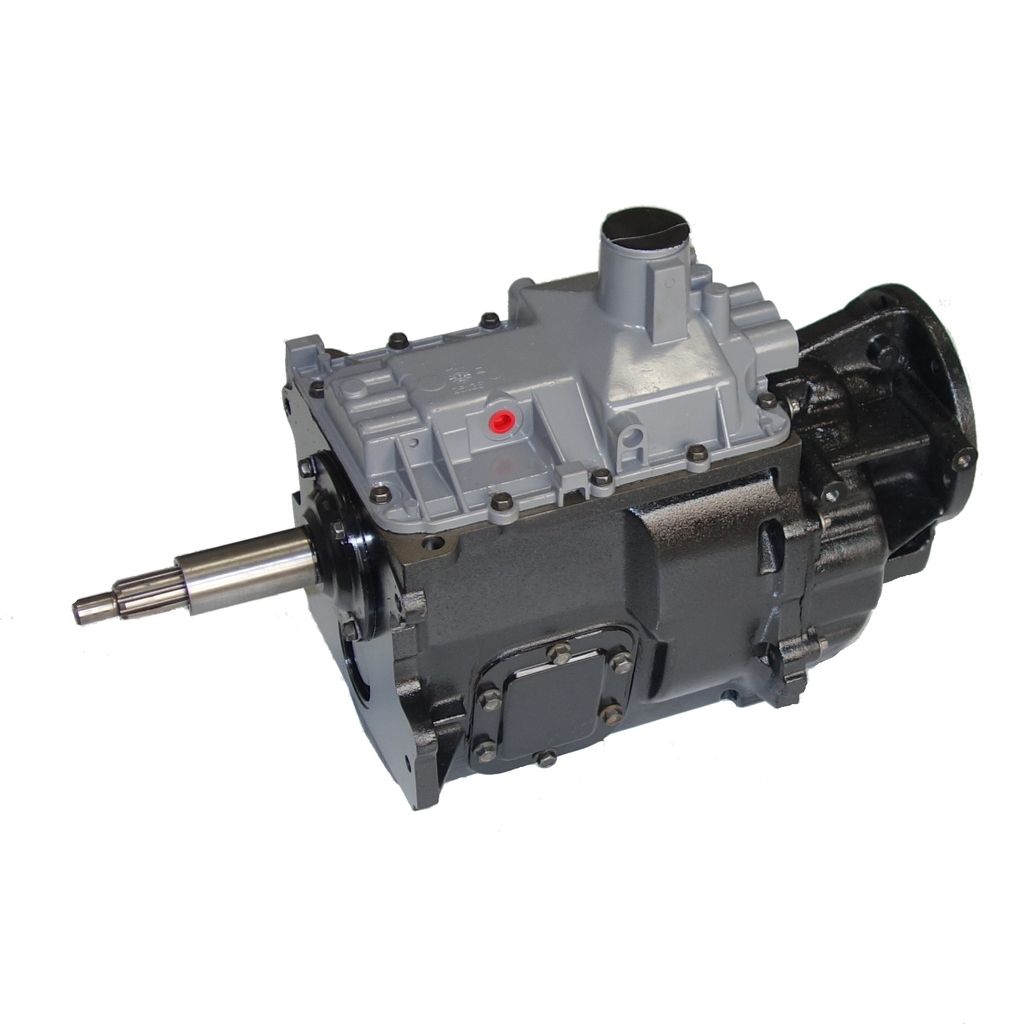

RemanufacturedNV4500/MW3 Transmission
$2,352.00
- Part Number:
- 40016
- Vehicle:
- Chevrolet K1500 (1995)
- Chevrolet K2500 (1995)
- Chevrolet K3500 (1995)
- GMC K1500 (1995)
- GMC K2500 (1995)
- GMC K3500 (1995)
- Note:
- NV4500; Cast Iron Case, Detachable Bell Housing, External Slave Cylinder, Square Four Bolt Shift Tower, Main Case Cast 16812, Top Cover Cast 18860, Or 25137, Tail Housing Cast 18306, Hollander Numbers: 400-02624, 400-03919
- Transmission Speed:
- 5

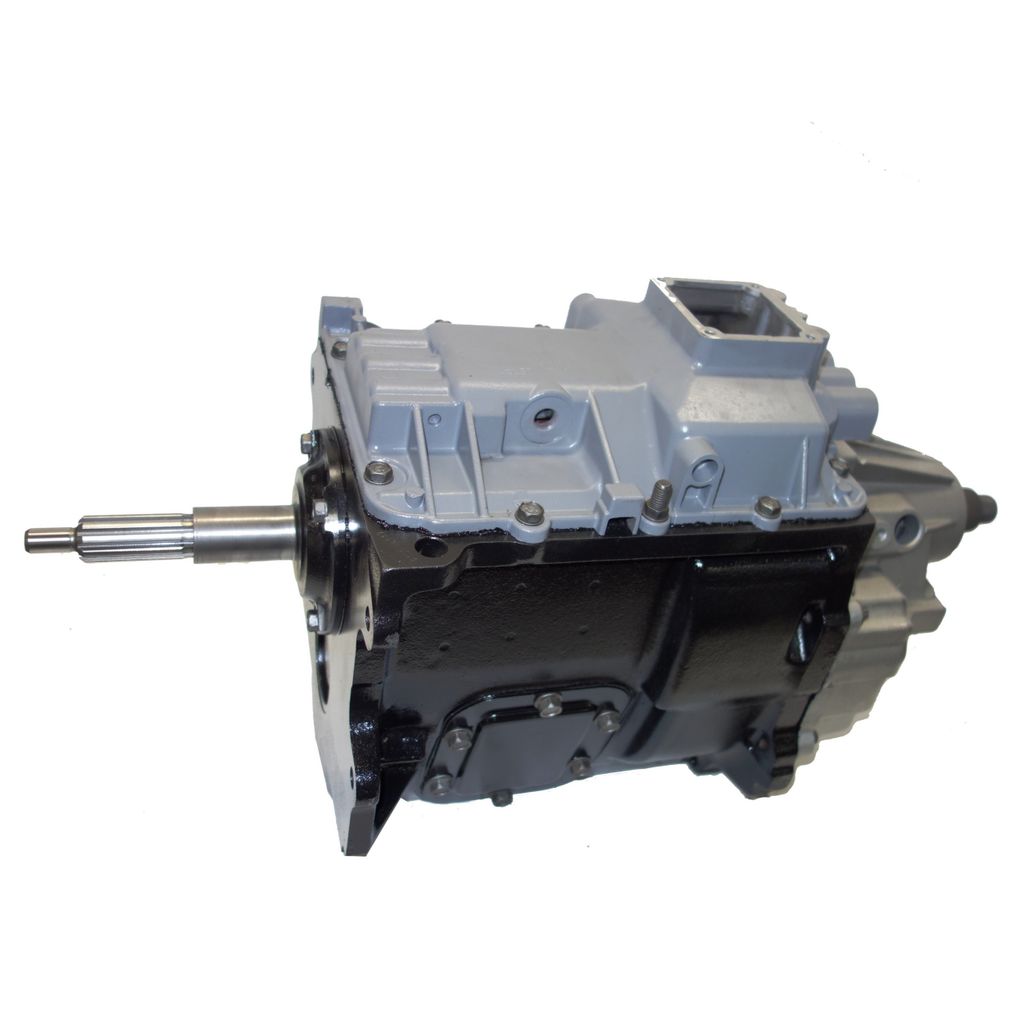

RemanufacturedMT8 Transmission
$2,352.00
- Part Number:
- 40001
- Vehicle:
- Chevrolet C1500 (1992-1994)
- Chevrolet C2500 (1993-1994)
- Chevrolet C3500 (1993-1994)
- GMC C1500 (1992-1994)
- GMC C2500 (1993-1994)
- GMC C3500 (1992-1994)
- Note:
- NV4500; Cast Iron Case, Detachable Bell Housing, External Slave Cylinder, Round Push And Twist Style Shift Lever Retainer, Uses A Nut To Hold The Rear Output Yoke On And Not A Bolt, Main Case Cast 16812, Top Cover Cast 17321, Or 25138, Tail Housing Cast 16808, Hollander Numbers: 400-02622, 400-03918
- Transmission Speed:
- 5
RemanufacturedNV4500/MW3 Transmission
$2,352.00
- Part Number:
- 40019
- Vehicle:
- Chevrolet K2500 (1996-1998)
- Chevrolet K3500 (1996-1998)
- GMC K2500 (1996-1998)
- GMC K3500 (1996-1998)
- Note:
- NV4500; Cast Iron Case, Detachable Bell Housing, Internal Slave Cylinder, Square Four Bolt Shift Tower, Reverse Is Not Synchronized, Main Case Cast 18157, Or 23167, Top Cover Cast 18860 or 25137, Tail Housing Cast 18306, Hollander Numbers: 400-02941, 400-02942, 400-03100, 400-03101
- Transmission Speed:
- 5
RemanufacturedNV4500/MW3 Transmission
$2,352.00
- Part Number:
- 40006
- Vehicle:
- Chevrolet C3500HD (1999-2002)
- GMC C3500HD (1999-2002)
- Note:
- NV4500; Cast Iron Case, Detachable Bell Housing, Internal Slave Cylinder, Square Four Bolt Shift Tower, 10 Spline 1.125 Inch Diameter Input Shaft, Reverse Is Synchronized, Has Emergency Brake Mounted On The Tail Housing (Not Included), Uses A Nut To Hold The Rear Output Yoke On And Not A Bolt, Main Case Cast 18157, 23167, Or 33903, Top Cover Cast 18860, or 25137, Tail Housing Cast 17106, Or 17108, Hollander Number: 400-03097
- Transmission Speed:
- 5
RemanufacturedNV4500/MW3 Transmission
$2,352.00
- Part Number:
- 40020
- Vehicle:
- Chevrolet C2500 (1999-2000)
- Chevrolet C3500 (1999-2000)
- Chevrolet Silverado 2500 (1999-2003)
- GMC C2500 (1999-2000)
- GMC C3500 (1999-2000)
- GMC Sierra 2500 (1999-2003)
- Note:
- NV4500; Cast Iron Case, Detachable Bell Housing, Internal Slave Cylinder, Square Four Bolt Shift Tower, Reverse Gear Is Synchronized, Screw In Speed Sensor, Uses A Nut To Hold The Rear Output Yoke On And Not A Bolt, Main Case Cast 18157, 23167 Or 33903, Top Cover Cast 18860, or 25137, Tail Housing Cast 25868, Hollander Numbers: 400-03098, 400-03099, 400-03449, 400-03885, 400-04278
- Transmission Speed:
- 5
Remanufactured
MT8 Transmission
$2,352.00
- Part Number:
- 40004
- Vehicle:
- Chevrolet C3500HD (1994)
- GMC C3500HD (1994)
- Note:
- NV4500; Cast Iron Case, Detachable Bell Housing, External Slave Cylinder, Square Four Bolt Shift Tower, Has Emergency Brake Mounted On The Tail Housing (Not Included), Uses A Nut To Hold The Rear Output Yoke On And Not A Bolt, Main Case Cast 16812, Top Cover Cast 18860, or 25137, Tail Housing Cast 17106, OR 17108, Hollander Number: 400-02623
- Transmission Speed:
- 5
RemanufacturedNV4500/MW3 Transmission
$2,352.00
- Part Number:
- 40005
- Vehicle:
- Chevrolet C3500HD (1996-1998)
- GMC C3500HD (1996-1998)
- Note:
- NV4500; Cast Iron Case, Detachable Bell Housing, Internal Slave Cylinder, Square Four Bolt Shift Tower, Reverse Is Not Synchronized, Has Emergency Brake Mounted On The Tail Housing (Not Included), Uses A Nut To Hold The Rear Output Yoke On And Not A Bolt, Main Case Cast 18157, 23167, Or 33903, Top Cover Cast 18860, or 25137, Tail Housing Cast 17106, Or 17108, Hollander Numbers: 400-02938, 400-03097
- Transmission Speed:
- 5
RemanufacturedNV4500 Transmission
$2,352.00
- Part Number:
- 40036
- Vehicle:
- Dodge Ram 2500 (1998-2001)
- Dodge Ram 3500 (1998-2001)
- Note:
- NV4500; Cast Iron Case, Aluminum Top Cover, Thru 7/10/2000, 23 Spline Output Shaft, Square Four Bolt Shift Tower, Hollander Number: 400-03249
- Transmission Speed:
- 5
RemanufacturedNV4500/MW3 Transmission
$2,352.00
- Part Number:
- 40021
- Vehicle:
- Chevrolet K2500 (1999-2000)
- Chevrolet K3500 (1999-2000)
- Chevrolet Silverado 2500 (1999-2003)
- GMC K2500 (1999-2000)
- GMC K3500 (1999-2000)
- GMC Sierra 2500 (1999-2003)
- Note:
- NV4500; Cast Iron Case, Detachable Bell Housing, Internal Slave Cylinder, Square Four Bolt Shift Tower, Reverse Gear Is Synchronized, Main Case Cast 18157, 23167, Or 33903, Top Cover Cast 18860, or 25137, Tail Housing Cast 18306, Hollander Numbers: 400-03100, 400-03101, 400-03451, 400-04279
- Transmission Speed:
- 5
Why Choose TransmissionLocator.com?
Transmission Locator | Other Vendors | |
|---|---|---|
Transparent Pricing | Check | x |
Best Price Guarantee | Check | x |
Flat Rate Shipping (Commercial address) | Check | x |
Up to 5 Years Unlimited Mile Warranty | Check | x |
Torque Convertor Included | Check | x |
No Core Charge for 30 Days | Check | x |
Free Shippng on Core Return | Check | x |
Why Choose TransmissionLocator.com?
Question to Ask | Transmission Locator | Other Vendors |
|---|---|---|
Is shipping free? | We offer Flat Rate Shipping (Commercial address) | Additional or Store Pickup |
Who pays for Core Return? | We Do | You Do (Store Drop off) |
Do I pay for Core today? | No, we waive Core Charge for 30 days* | Yes, but will be refunded when shipped back |
Is torque convertor included? | Always! | Not included |
What is the warranty? | Up to 5 years/Unlimited miles | Up to 3 years/Unlimited miles |
Best Price Guarantee? | Yes! (for comparable conditions only) | They Don't |
At Transmission Locator, we are dedicated to providing you with the best value without compromising on quality. If you discover a similar transmission (with comparable tax, shipping, core policy, warranty, labor coverage, and mileage terms) at a lower price elsewhere, we will match or exceed that price. This commitment reflects our confidence in offering the best deal possible. Shop with us knowing that you will always receive top-quality products at the most competitive prices.
Read the fine print…
You might notice that some competitors offer lower prices, but they charge additional fees for every subsequent step. In contrast, our shipping charge covers the cost of returning your Core product, while others charge you or require you to pay for it.
To maintain our affordable prices, we kindly request the return of your old transmission (the core). We’ve made the process convenient for you. After installing your remanufactured unit, simply contact us to arrange a FREE core pickup.
We’ll cover the shipping costs!
Please schedule the return within 30 days. If you opt for the “Waive Core Charge” option, your card will only be charged if the core isn’t returned. If you need more time, please let us know. Remember, the warranty is contingent on returning your core.
While we disclose your flat-rate shipping upfront, other companies may require you to purchase an upgrade to qualify for the lower shipping cost.
We deliver your remanufactured transmission promptly and reasonably to any commercially zoned business address within the continental United States. In stock orders typically ship within 24-48 hours and arrive within a few business days after shipping. However, please note that residential or liftgate deliveries incur an additional $99 fee.
Although every shipment is carefully inspected before it leaves our facility, unexpected issues can occur in transit. Please examine your delivery as soon as it arrives and report any concerns right away. Our top priority is your complete satisfaction.
Every remanufactured transmission we sell is backed by our nationwide, no-hassle warranty. Unlike many competitors who charge extra, our units include a No-Fault Warranty at no additional cost.
- Fully transferable – Coverage follows your vehicle’s VIN, even if sold.
- Parts & labor included – Repairs at certified shops are reimbursed.
- Instant replacement – A replacement ships as soon as a claim is approved.
Coverage Terms
- Standard Warranty: 3 years / Unlimited miles (personal use)
- Extended Warranty: 5 years / Unlimited miles (personal use)
- Commercial Warranty: 3 years / Unlimited miles (parts & labor)
Premium Labor Upgrade
For added peace of mind, you can upgrade to Premium Labor, which raises labor reimbursement from the standard $50/hour to $95/hour.
Our team is dedicated to making sure every warranty claim is handled quickly, smoothly, and successfully—so you can get back on the road with confidence.
